METABO Hobelmaschine HC 260 C – 2,8 DNB + Späneabsauganlage SPA 1200 Set

Strengths and benefits

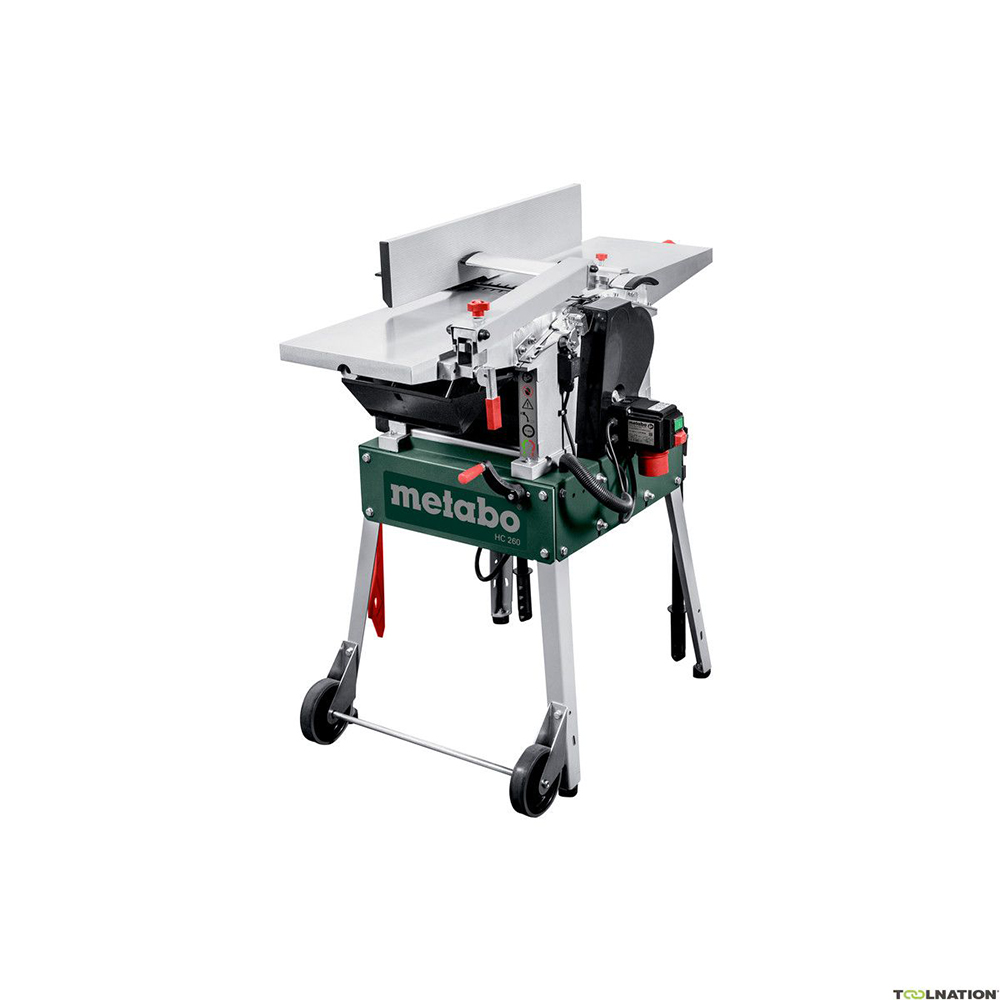

Planer HC 260 C: Simple, tool-free conversion from planer to thicknesser. Powerful universal motor for high-torque drive and an even planing pattern. Stable gear for consistent workpiece feed

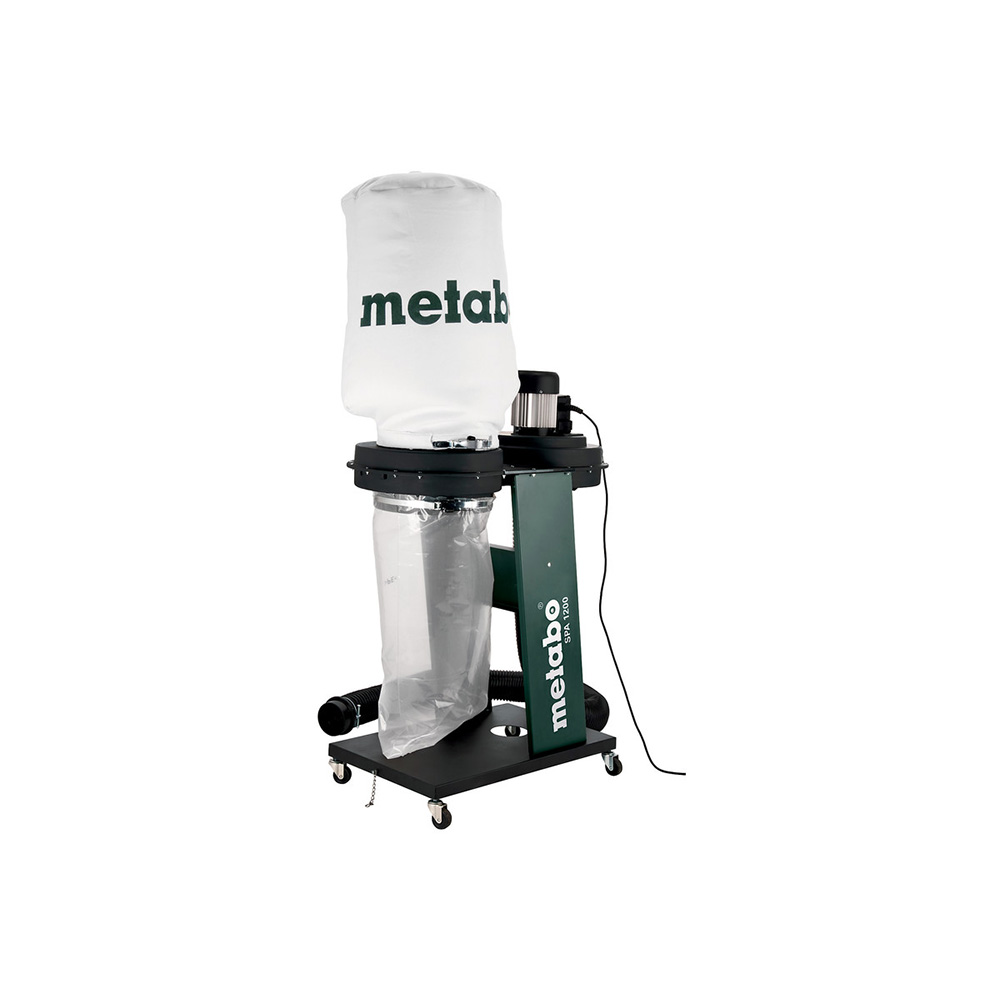

Chip extraction system SPA 12000: Raw air dust extractor for (semi-) stationary woodworking machines (observe country-specific regulations!). Filter material of dust class L

Technical data

Dimensions 1,110 x 620 x 960 mm

Dressing plates L x W 1,040 x 260 mm

Chip removal dressing 0 – 3 mm

Chip removal thickness planing 0 – 3 mm

Material of dressing plates: cast aluminum

Material thickness table gray cast iron

Thickness table L x W 400 x 260 mm

Passage height/width 160 / 260 mm

Feed speed 5 m/min

Diameter of the knife shaft 63 mm

Number of knives 2

Speed ​​of the knife shaft 6,500 rpm

Rated input power 2.8 kW

Output power 2 kW

Weight 71kg

scope of delivery

1xplaning machine HC 260 C 2.8 DNB,

built-in disposable reversible planer blades,

short, pivoting joining stop,

chip ejection hood,

push stick,

Suction nozzle.

1xchip extraction system SPA 1200, suction hose 100 x 2500 mm, filter bag made of needle felt, chip collection bag10
