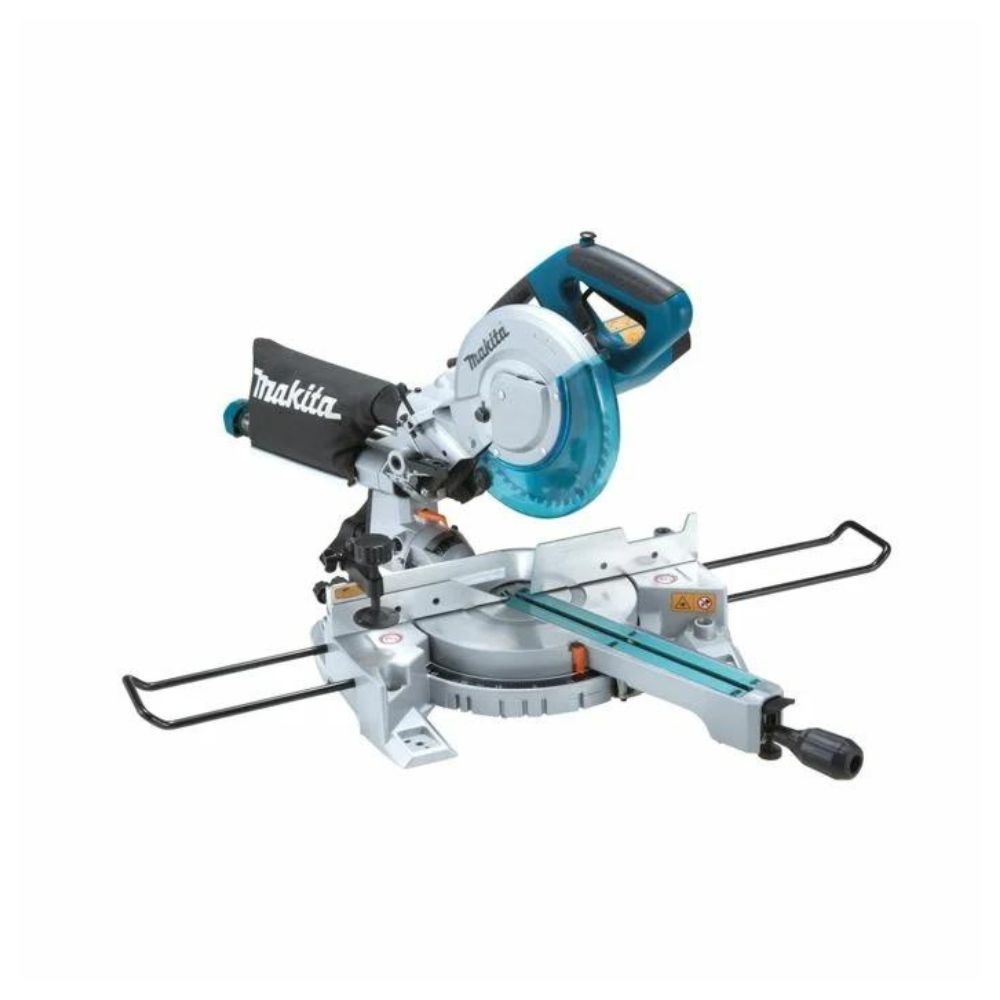

Saw head can be swiveled continuously from 45° – 48° to the left and from 0° – 5° to the right
Turntable adjustable to the right up to 50° and left up to 60°
Large cutting capacity of 65mm x 305mm
Tool-free adjustable stop
Double guide mechanism
LED work light and laser scribe line
Technical data
? Power consumption 1,400 W
? Idle speed 5,000 rpm
? Cutting capacity (90°) 65 x 305 mm
? Cutting capacity (45°) 65 x 215 mm
? Saw blade (Ø) 216 mm
? Saw blade hole (Ø) 30 mm
? Weight according to EPTA 14.2 kg
? Dimensions (L x W x H) 755 x 450 x 488 mm
included supply
? Adjustment triangle 762001-3
? Support extension JM23000127
? Spanner 13-3 JM23100197
? Mounting set JM23510009
? Dust bag JM23510010
? Saw blade 48 teeth JM23570002
