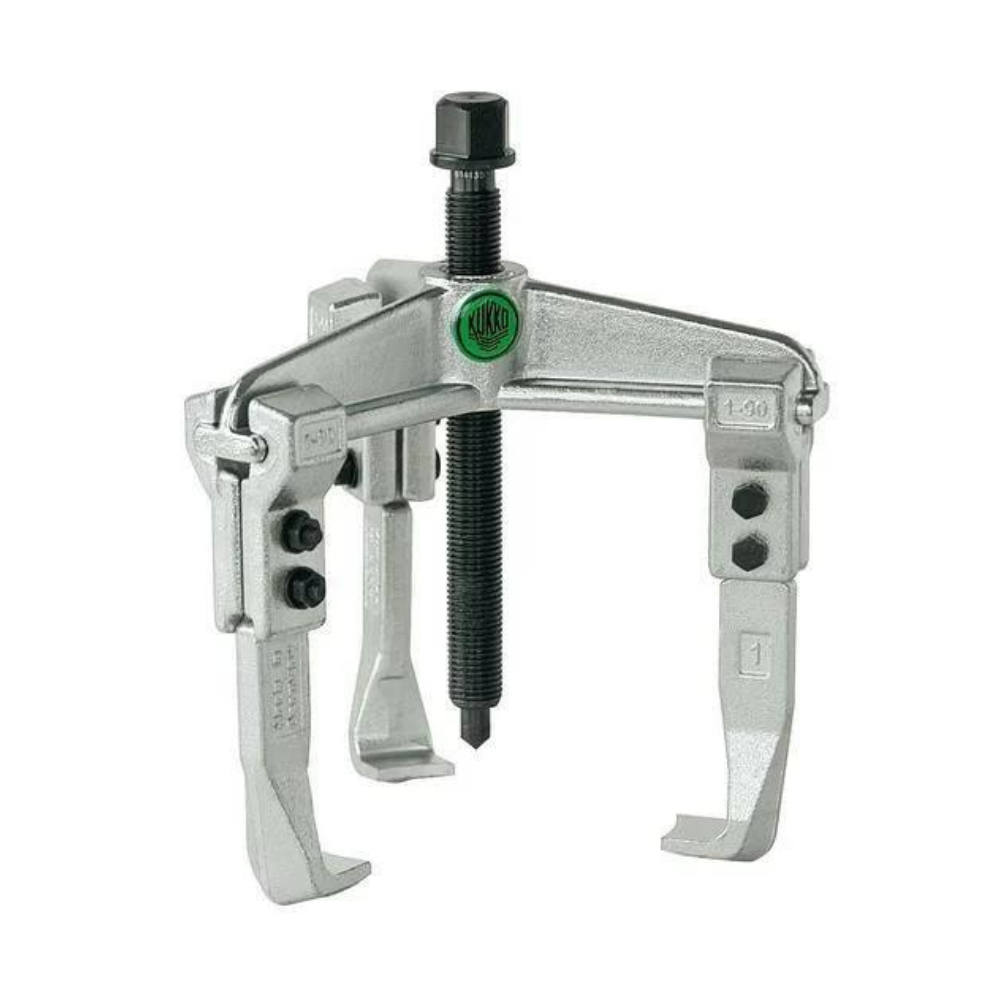

KUKKO 3-ARM ABZIEHER 80MM

Description

– If there is not enough free space around the part to be removed, we recommend a 2-arm puller series 20 for optimal load distribution.

– Narrow pulling hooks with quick adjustment.

– Continuously movable puller hooks on the crossbar.

– The three-arm design guarantees even load distribution and therefore a particularly secure hold on the part to be removed.

– Parallel puller hooks in every position, even under full load.

– Mechanical spindle.

– Rolled thread is specially coated.

– Self-healing corrosion protection (link [KUKKoating, KUKKoating] of the galvanized parts.

Application

– For removing bearings, gears, discs, etc. for narrow and difficult-to-access spaces.

Advantage

– Optionally convertible to different pulling hooks.

– Variable clamping depth thanks to puller hook extensions, optionally available up to puller size -30.

– Collar of the spindle head prevents the key from slipping.

– Can be used as an external and internal puller by turning the pulling hooks over.

– Also suitable for pulling off asymmetrical workpieces.

– All components can be delivered as spare parts, time-saving ordering through numbering.

– Product video available on the product.

Safety notice

– The sliding pieces of the puller hooks must always sit completely and firmly on the crosshead.

– If there are several parts to be removed, always remove them gradually. Never remove several parts at the same time.

– The contact surfaces of the pulling hooks must sit completely and straight under the part to be pulled off.

– Do not use electric or pneumatic power or impact wrenches.

– Accident protection tarpaulin required.

– Wear safety glasses.
