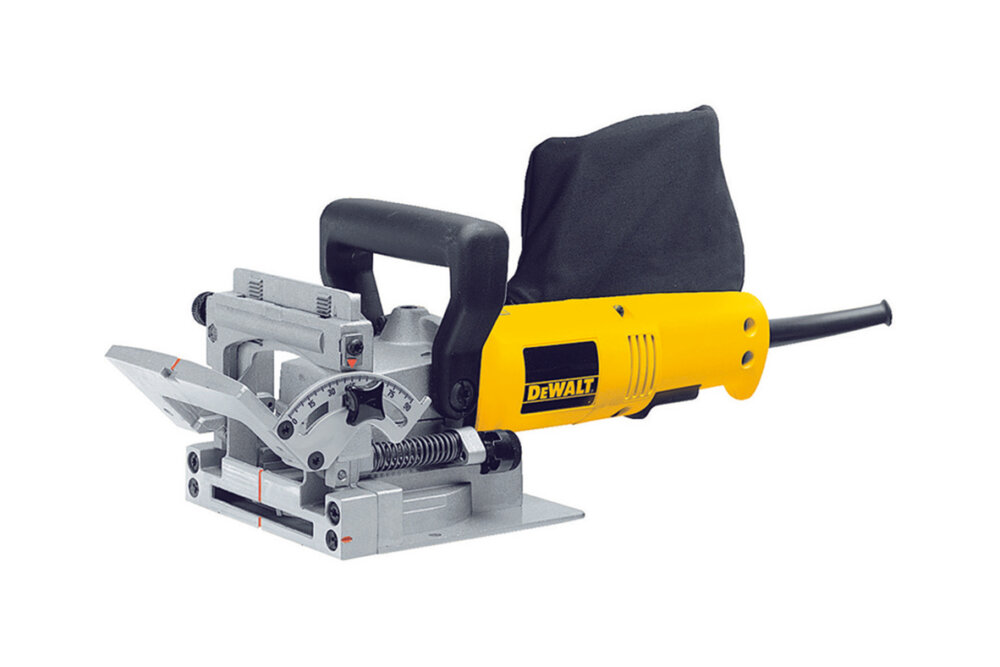

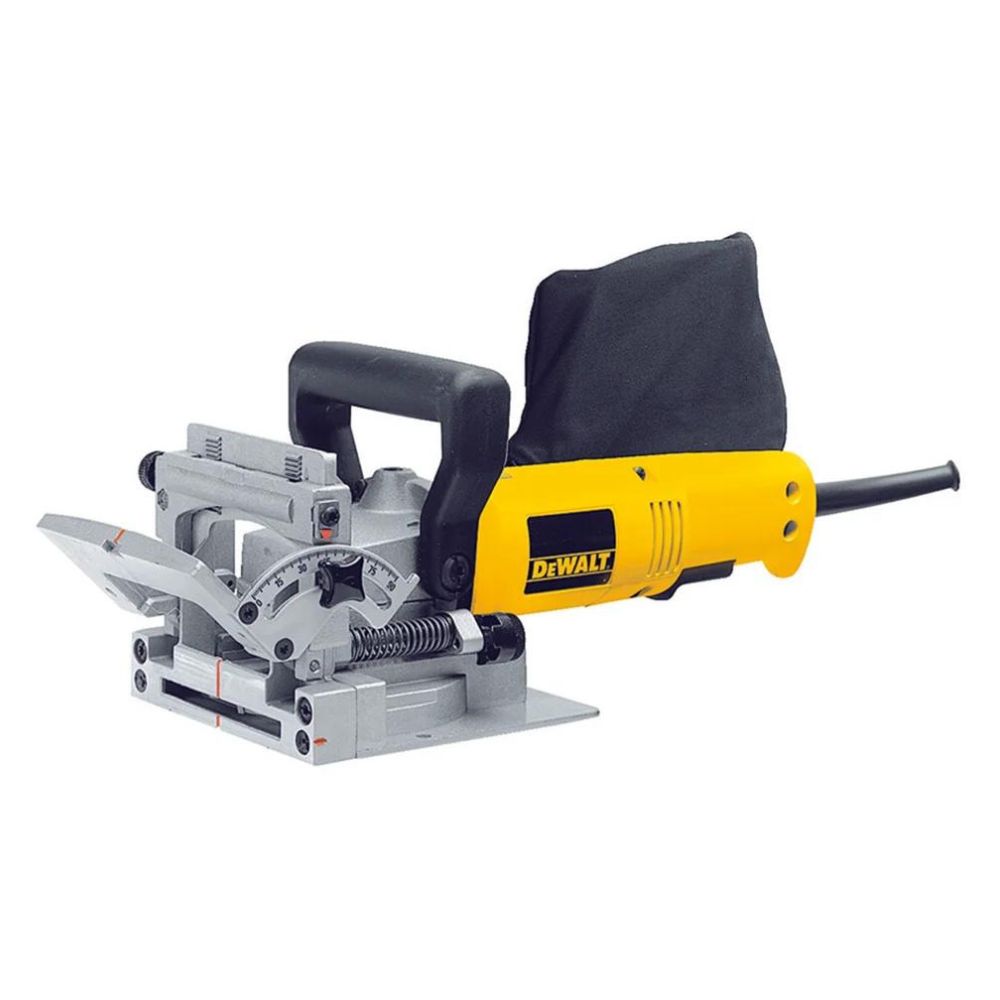

Product features of the lamella dowel cutter DW682K-QS
- Precise rack guidance guarantees exact, vertical adjustment and alignment of the rip fence
- Adjustable fixed notches for lamellar dowels 0, 10, 20 and maximum milling depth with fine adjustment for maximum accuracy
- Height-adjustable miter stop that can be adjusted from 0° to 90° for material thicknesses from 10 to 70 mm
- Retractable anti-slip device, eight-fold marking and stop with viewing window for precise work
- Spindle lock for easy cutter changes
Standard scope of delivery
- HM slot cutter (4 mm)
- Chip collection bag
- Assembly tool
- Suction adapter
- Transport case
Recording power
|
600 watts
|
output power
|
335 watts
|
idle speed
|
10000 rpm
|
max. cutter diameter
|
100mm
|
max. milling depth
|
20mm
|
Miter adjustment
|
0 – 90°
|
Weight
|
3.0kg
|
Emission data
Sound pressure level LPA dB(A)
|
82.0
|
Sound power level LWA dB(A)
|
100.0
|
K dB(A)
|
3.1
|
Vibration (m/s²) processing wood
|
< 2.5
|
K (m/s²) Processing wood
|
1.5
|
