Fein Magnetkernbohrmaschine KBU 35 Q – 72705361000

Product description

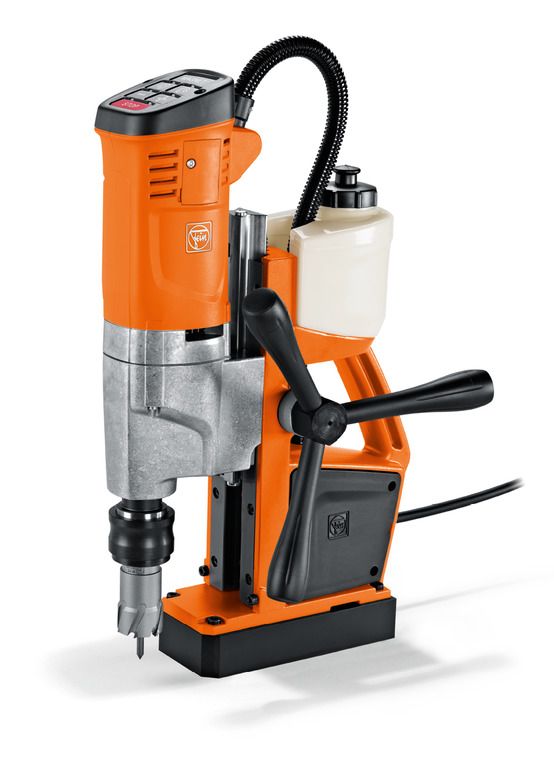

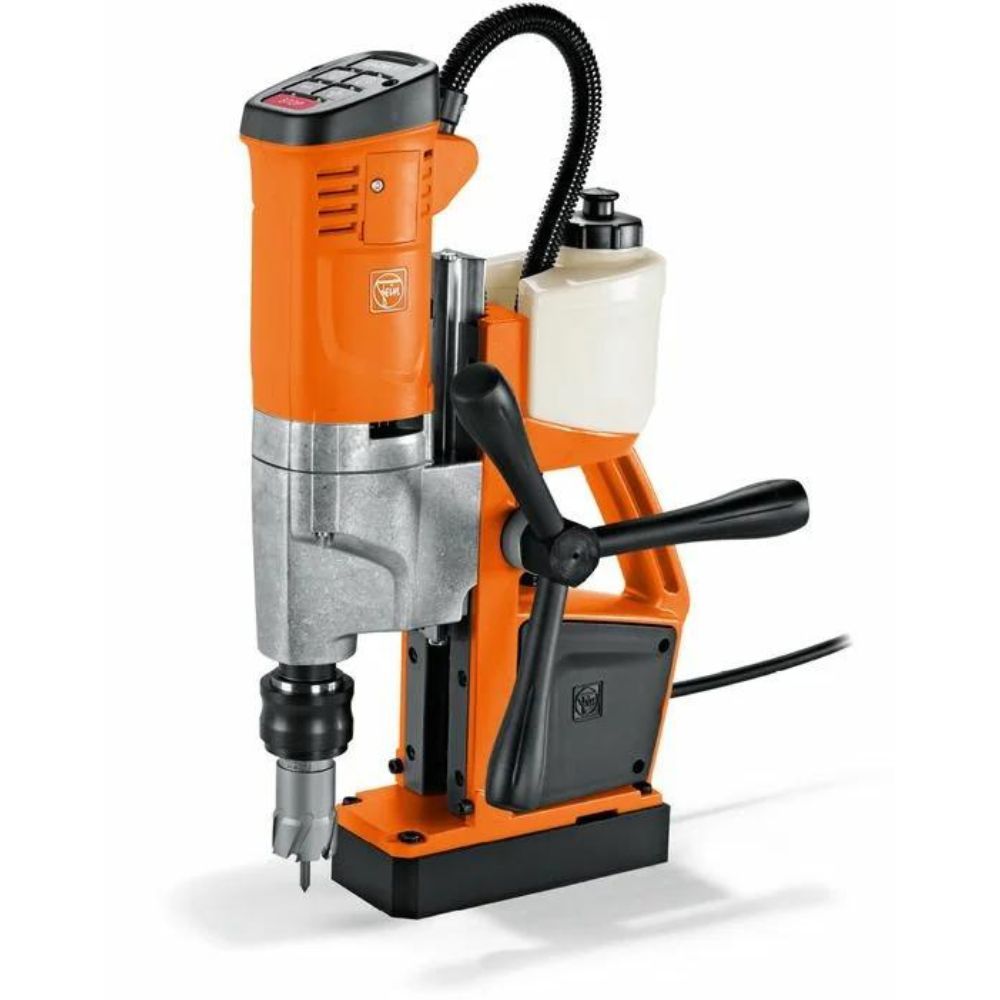

Universal magnetic core drilling machine up to 35 mm

KBU 35 Q

Small and powerful 1-speed universal magnetic core drilling machine with clockwise/left-hand rotation and maximum functionality for flexible work on the construction site.

Product advantages

Extremely resilient construction thanks to the solid machine structure with pivoting motor cable protection hose. Designed for tough use in industry and trade.

Perfect power-to-weight ratio thanks to the compact, weight-optimized design and FEIN 1,100 W high-performance motor with high speed stability for reliable and economical work.

Thanks to clockwise/anti-clockwise rotation, electronic speed adjustment and a 260 mm stroke range, universal work applications such as core, spiral and thread drilling as well as countersinking and reaming are possible.

Small and light.

Simple and confusion-free operating concept in the user’s field of vision.

Additional magnetic switch in the drill stand.

Tool-free core drill quick-change system.

Speed-controlled tacho electronics.

High magnetic holding power.

Integrated coolant tank.

Side-changeable feed handwheel.

Tilt sensor.

Speed ​​memory memory function”.”

Technical data

Nominal consumption 1,100 W

Power output 550 W

Load speed 130 – 520 1/min

Twist drill max. Ø 16 mm

Core drill drilling depth max. 50 mm

Tapping M 14

Countersink max. Ø 31 mm

Grating max. Ø 16 mm

HM core drill max. Ø 35 mm

HSS core drill max. Ø 35 mm

Core drill holder QuickIN

Core drill change without tools

Stroke 135mm

Total stroke range 260 mm

Magnet holding force 10,000 N

Magnetic base dimensions 175 x 80 mm

Cable with plug 4 m

Weight according to EPTA 10.6 kg

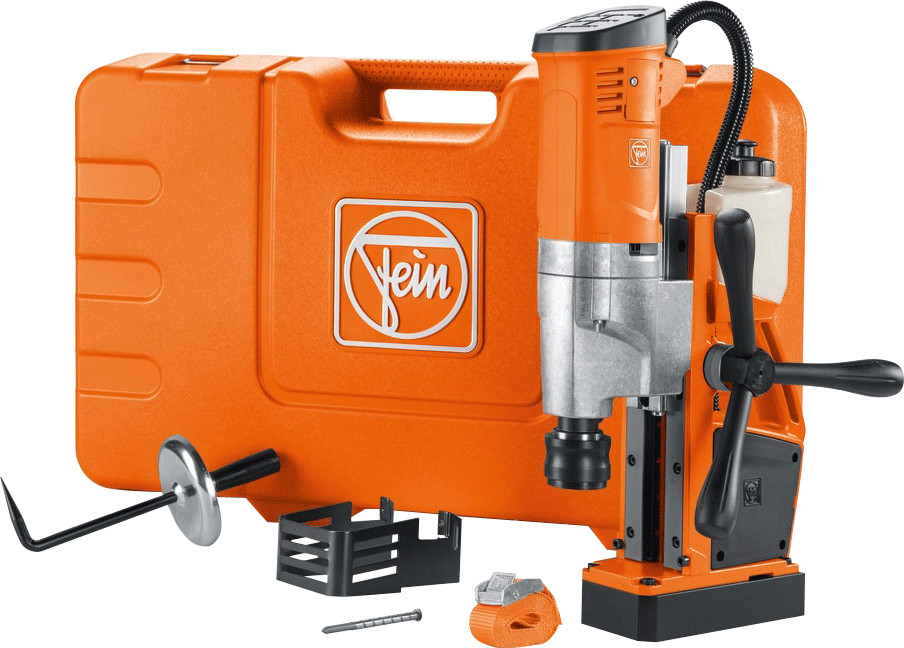

scope of delivery

1 suitcase

1 coolant tank

1 lashing strap

1 chip hook

1 centering pin

1 touch protection
